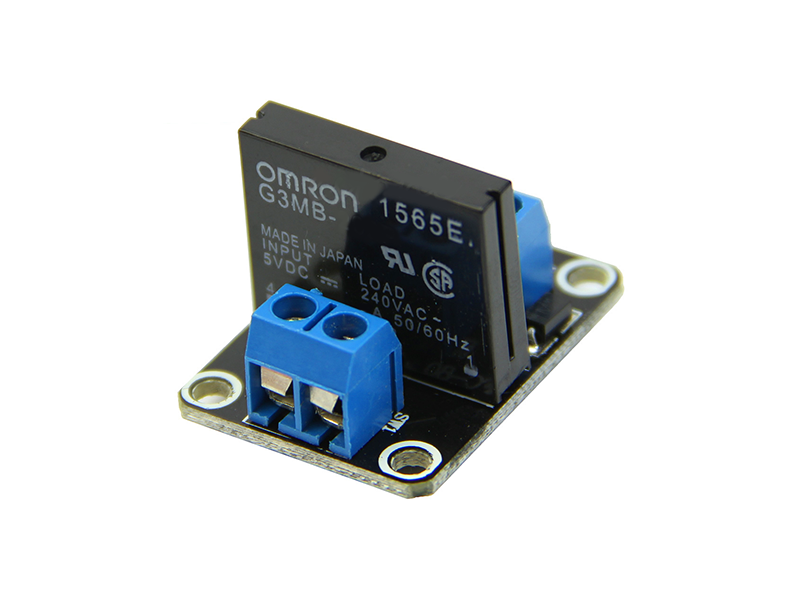

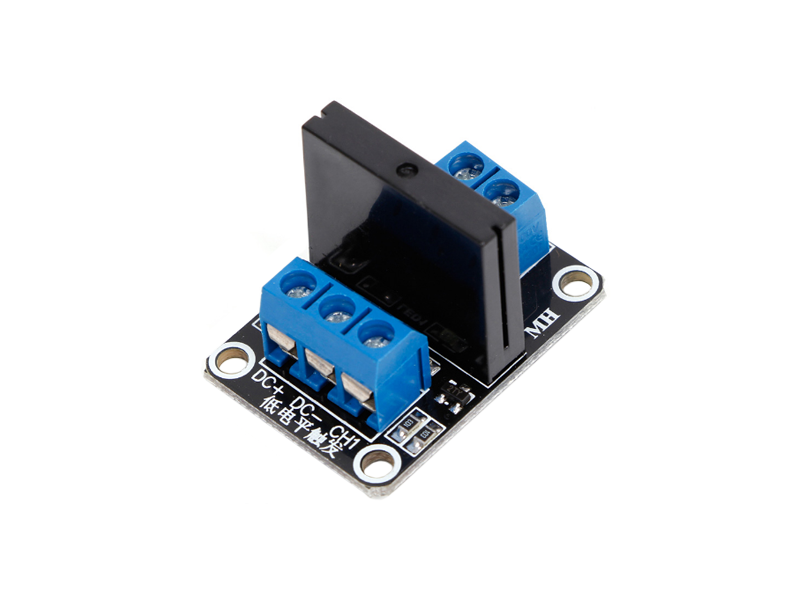

1 Channel 5V Solid State Relay(SSR) Module

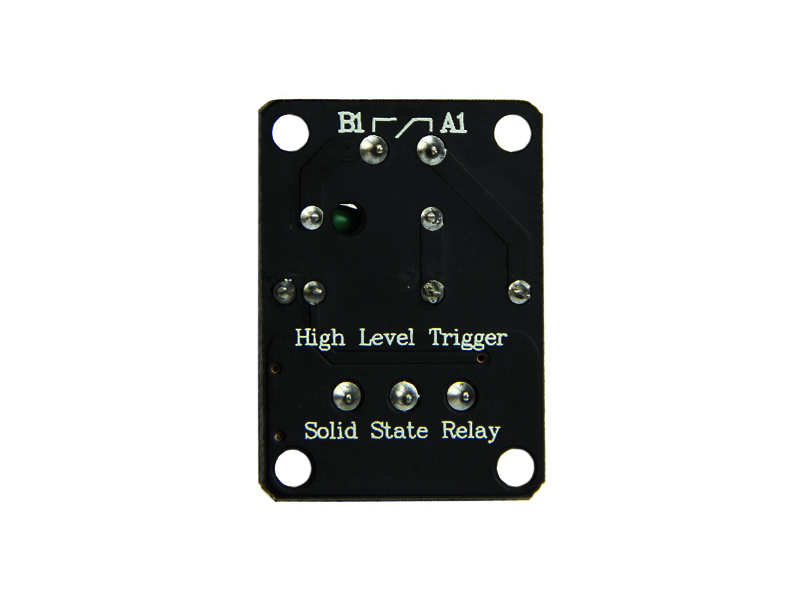

1 Channel 5V Solid State Relay(SSR) Module Back

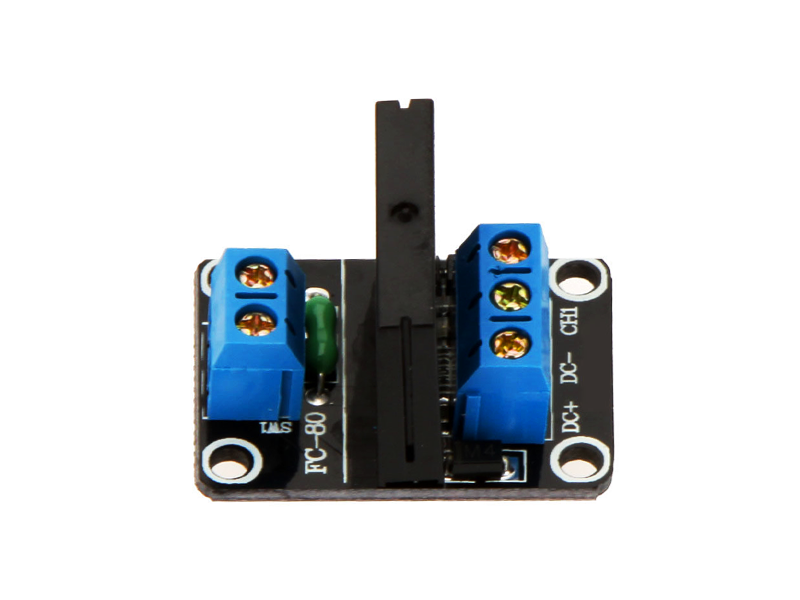

1 Channel 5V Solid State Relay(SSR) Module Top
1 Channel 5V Solid State Relay(SSR) Module Bottom
1 Channel 5V 2A Solid State Relay(SSR) Module - Thumb 1
1 Channel 5V 2A Solid State Relay(SSR) Module - Thumb 2
1 Channel 5V 2A Solid State Relay(SSR) Module - Thumb 3
1 Channel 5V 2A Solid State Relay(SSR) Module - Thumb 4
LKR 300.00
LKR 350.00
14% OFF
Out of Stock
View Product Details

It is a 1-channel solid state relay board, which can be controlled directly by a wide range of microcontrollers such as Arduino, AVR, PIC, ARM, PLC, etc.

Specifications

Current
Current per relay - 20mA Switching Current - up to 2A(Maximum)
I/O Pins
1 Digital Input (Low Level)
Input Voltage
Switching voltage - 75 to 264V AC (50/60Hz).
Length x Width x Height
25mm x 34mm x 25mm
Operating Voltage
0 ~ 1.5V state low relay ON 2.5 ~5V state high relay OFF
