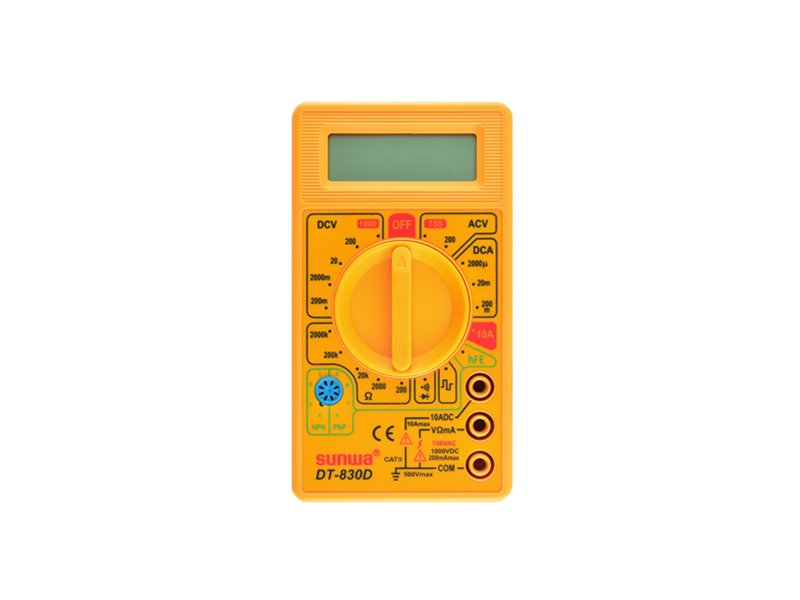

Sunwa DT830D Digital Multimeter

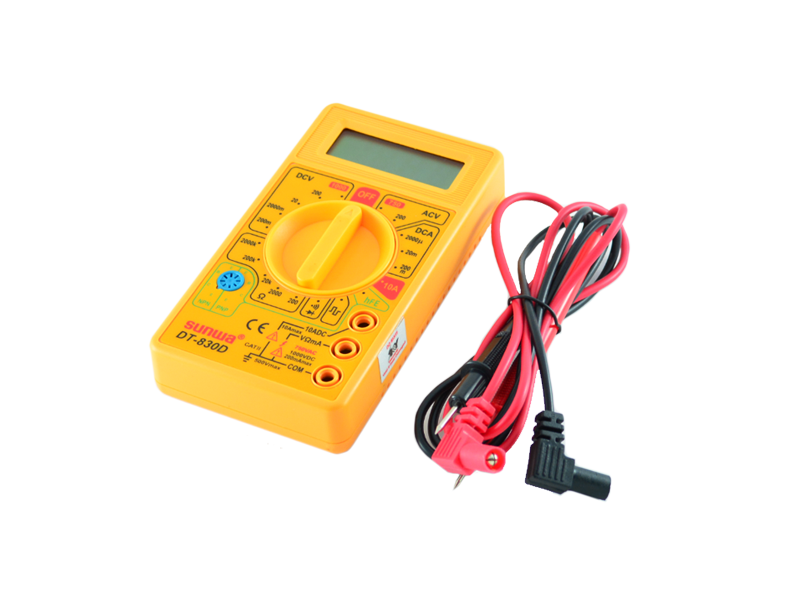

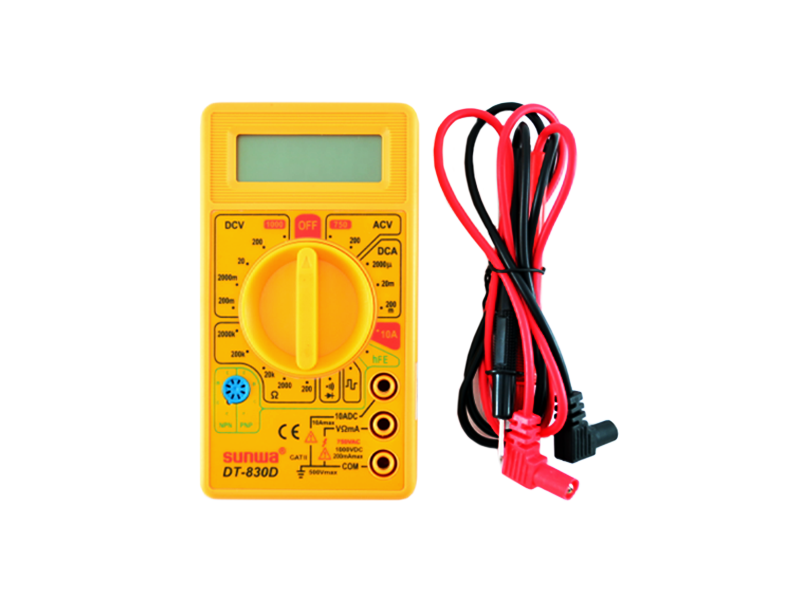

Sunwa DT830D Digital Multimeter with Probe

Sunwa DT830D Digital Multimeter Package

Sunwa DT830D Digital Multimeter - Thumb 2

Sunwa DT830D Digital Multimeter - Thumb 3

Sunwa DT830D Digital Multimeter - Thumb 4

LKR 2,250.00

LKR 2,500.00

10% OFF

View Product Details

This is a basic digital multi-meter that can used for learning and work purpose. You can measure resistance, current, DC voltage, AC voltage, transistors and diodes also. This multi-meter comes with small buzzer.

Specifications

Battery Type

9V PP3 Battery (Included)

Current

200uA (Resolution 100nA) 2000uA (Resolution 1uA) 20mA (Resolution 10uA) 200mA (Resolution 100uA) 10A (Resolution 10mA)

Diode

Forward bias voltage drop

Frequency

As a Signal generator 5V peak-peak 50kΩ impedance

Operating Voltage

9 V

Package

1 x Sunwa DT830D Digital Multimeter 1 x Pair of Multi-meter Probe 1 x Instruction Manual 1 x Warranty Card

Resistance

200Ω (Resolution 0.1Ω) 2000Ω (Resolution 1Ω) 20KΩ (Resolution 10Ω) 200KΩ (Resolution 100Ω) 2000KΩ (Resolution 1KΩ)

Special Features

Buzzer (less than 100Ω)

Transistor

NPN and PNP Hfe - 1000 Base current approx 10uA VCE approximately 2.8V

Voltage

DC Voltage 200mV (Resolution 100uV) 2000mV (Resolution 1mV) 20V (Resolution 10mV) 200V (Resolution 100mV) 1000V (Resolution 1V) AC Voltage 200V (Resolution 100mV) 750V (Resolution 1V)

Warranty

6 Month
