SIM900 GPRS/ GSM Shield EF02020

  1. Shop
  2. Modules
  3. GSM & GPRS
  4. SIM900 GPRS/ GSM Shield EF02020
SIM900 GPRS/ GSM Shield EF02020 - Image 1
SIM900 GPRS/ GSM Shield EF02020 - Image 2
SIM900 GPRS/ GSM Shield EF02020 - Image 3
SIM900 GPRS/ GSM Shield EF02020 - Image 4
SIM900 GPRS/ GSM Shield EF02020 - Image 5

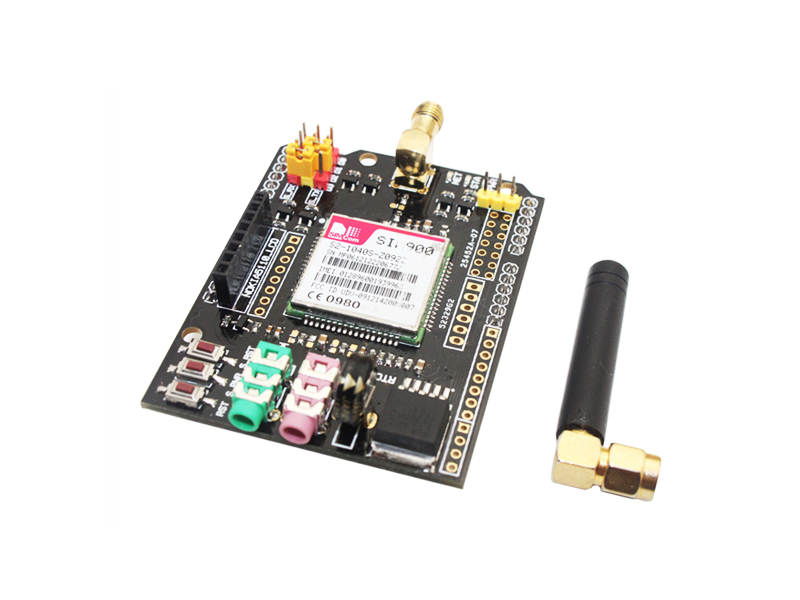

SIM900 GPRS/ GSM Shield EF02020

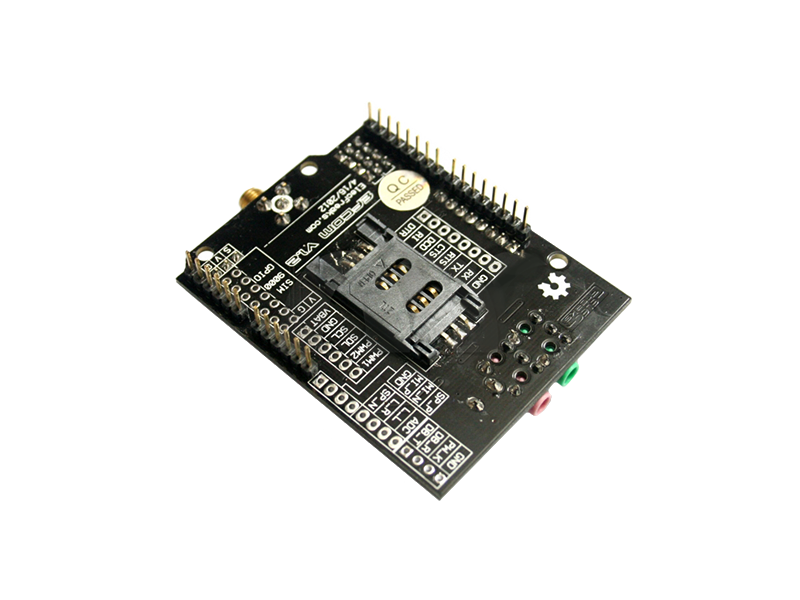

SIM900 GPRS/ GSM Shield EF02020 Bottom

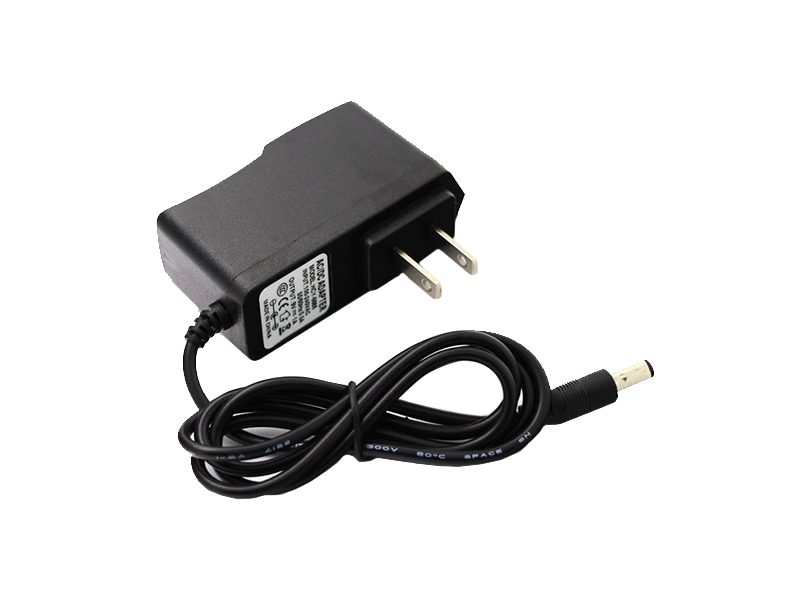

SIM900 GPRS/ GSM Shield EF02020 Power Adapter

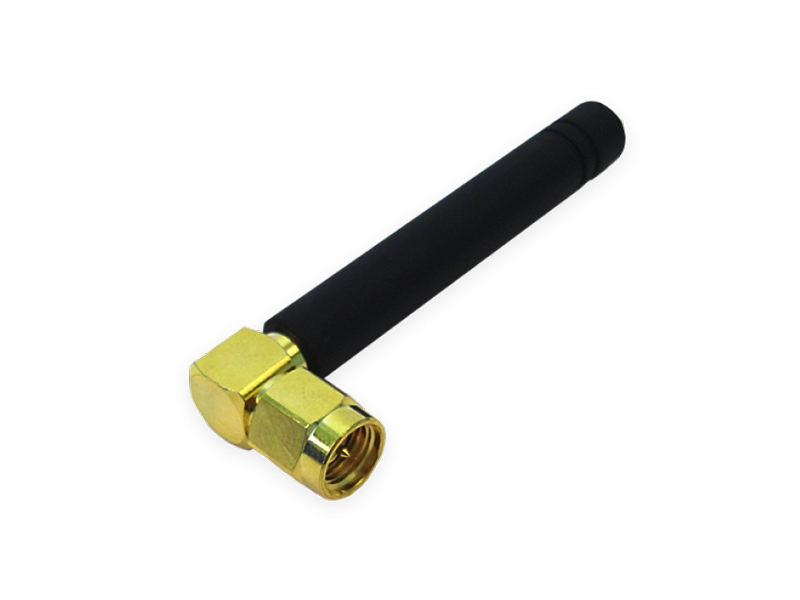

SIM900 GPRS/ GSM Shield EF02020 Antenna

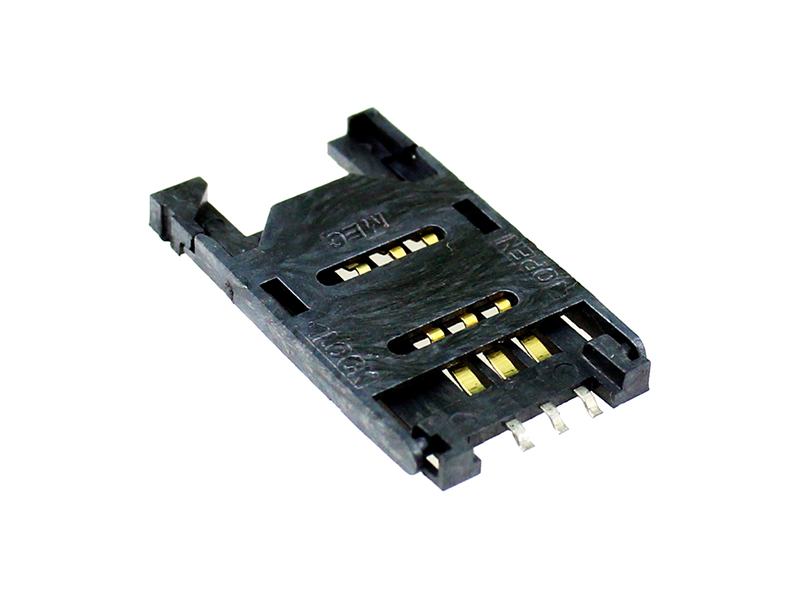

SIM900 GPRS/ GSM Shield EF02020 Sim Slot
SIM900 GPRS/ GSM Shield EF02020 - Thumb 1
SIM900 GPRS/ GSM Shield EF02020 - Thumb 2
SIM900 GPRS/ GSM Shield EF02020 - Thumb 3
SIM900 GPRS/ GSM Shield EF02020 - Thumb 4
SIM900 GPRS/ GSM Shield EF02020 - Thumb 5
LKR 6,600.00
LKR 6,750.00
2% OFF
Out of Stock
View Product Details

GPRS Shield - EFCom is an ultra compact and reliable wireless module. This GPRS Shield is compatible with all boards which have the same form factor (and pinout) as a standard Arduino Board. EFCom is base on SIM900 4 Frequency GPRS module.

Specifications

Audio
Earphone output and Mic Input
Buttons
Module power on Module reset Arduino reset
Class
GPRS multi-slot class 10/8 GPRS mobile station class B Class 4 (2 W 850/ 900 MHz) Class 1 (1 W 1800/1900MHz)
Compatible
Arduino Uno and Mega
Frequency
850/ 900/ 1800/ 1900 MHz
LCD Interface
Nokia 5110 LCD
Length x Width x Height
68mm x 53mm
Operating Voltage
5 V
Package
SIM900 GPRS/ GSM Shield EF02020 Antenna Extra sim slot Power adaptor
Power Source
9V 1A Power Adapter (Connecting to the Arduino)
Support
Short Message Service Audio GPRS AT commands
