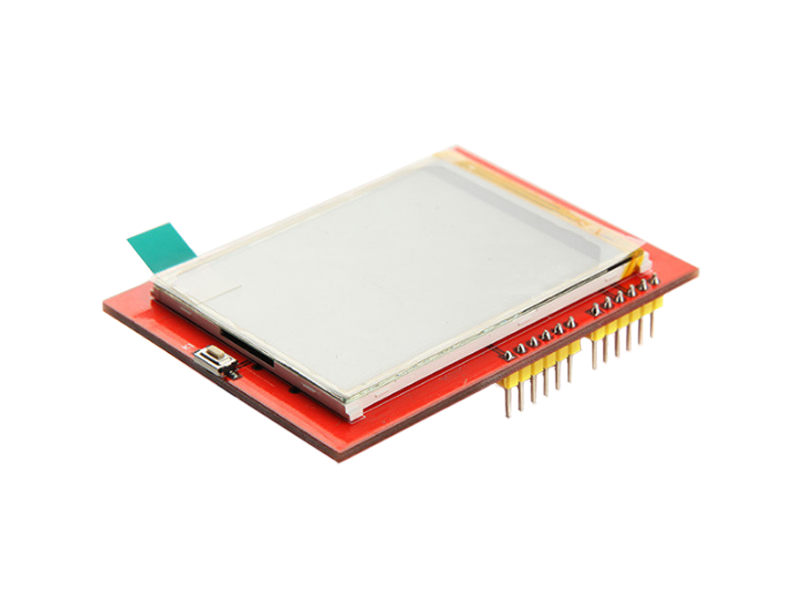

2.4 inch TFT Touch Screen Shield

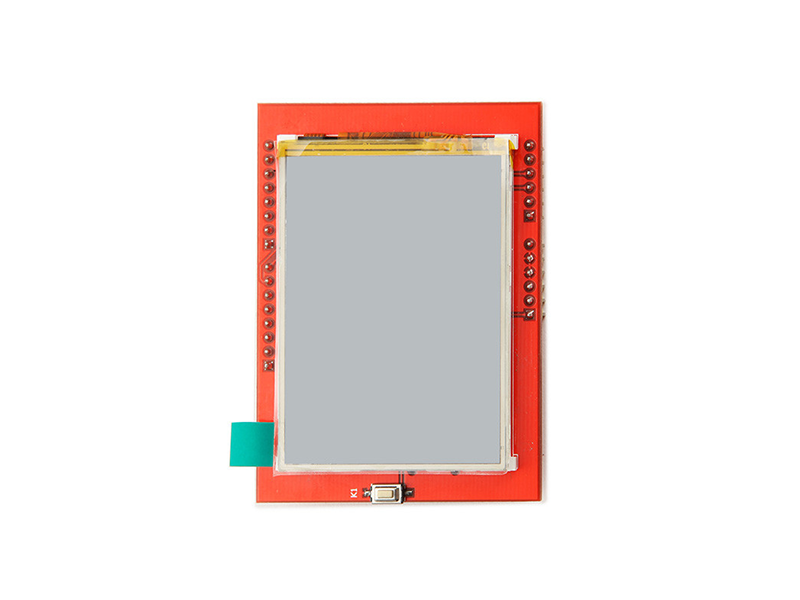

2.4 inch TFT Touch Screen Shield Top

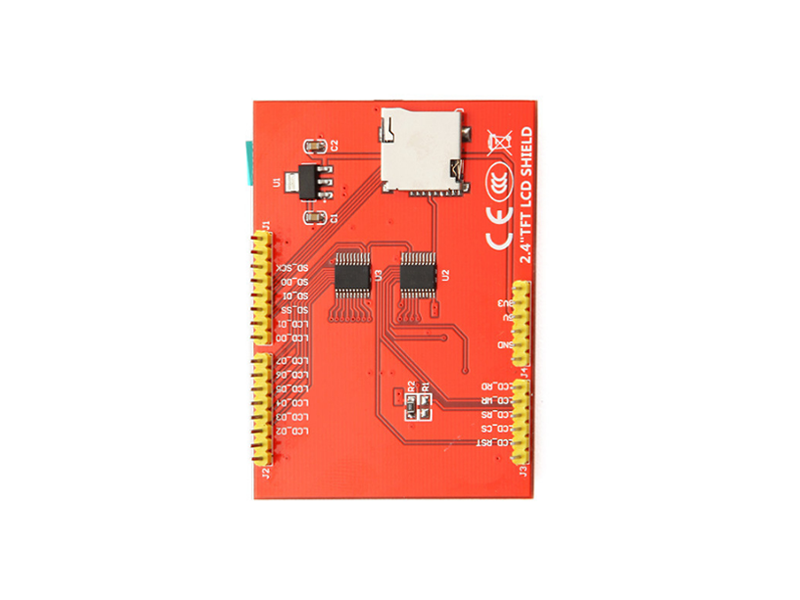

2.4 inch TFT Touch Screen Shield Bottom
LKR 2,600.00
2.4 inch TFT touch Screen LCD Module For Arduino. The LCD has excellent vivid color contrast. Spice up your Arduino project with a beautiful large touchscreen display shield with built in microSD card connection. This TFT display is big (2.4″ diagonal) bright (4 white-LED backlight) and colorful (18-bit 262,000 different shades)! 240×320 pixels with individual pixel control. It has way more resolution than a black and white 128×64 display. As a bonus, this display has a resistive touchscreen attached to it already, so you can detect finger presses anywhere on the screen.
Specifications
Colors
Colorful, 18-bit 262,000 different shades
I/O Pins
Uses digital pins 5-13 and analog 0-3. That means you can use digital pins 2, 3 and analog 4 and 5. Pin 12 is available if not using the micro SD
Interfaces
spfd5408 controller with built in video RAM buffer
LCD Type
2.4" (diagonal) LCD TFT display
Operating Voltage
5V compatible
use with 3.3V or 5V logic
Package
1 x 2.4 inch TFT Touch Screen Shield
1 x plastic pen
Special Features
Bright, 4 white-LED back-light on by default but you can connect the transistor to a digital pin for back-light control
4-wire resistive touch screen, 8 bit digital interface, plus 4 control lines, SD Card Slot
Video Resolution
240×320
