LED Dot Matrix Module

LED Dot Matrix Module - Image 1
LED Dot Matrix Module - Image 2
LED Dot Matrix Module - Image 3

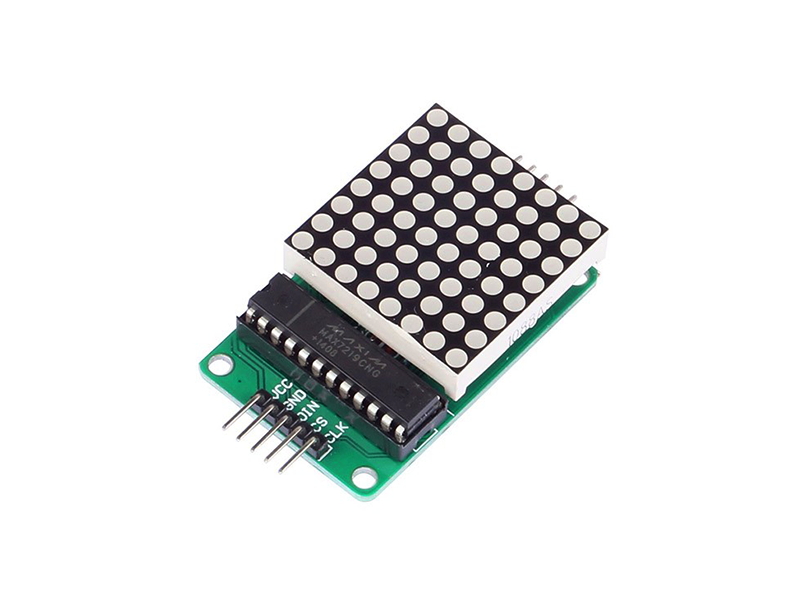

LED Dot Matrix Module

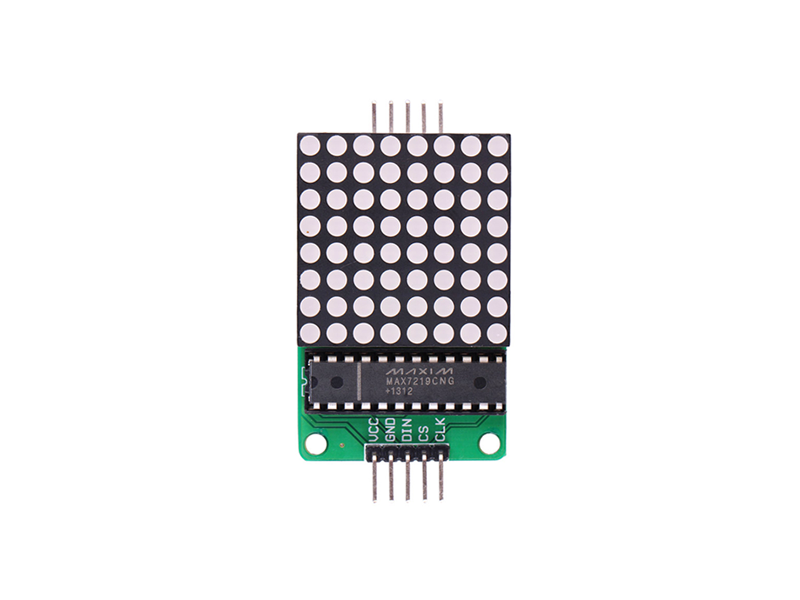

LED Dot Matrix Module Top

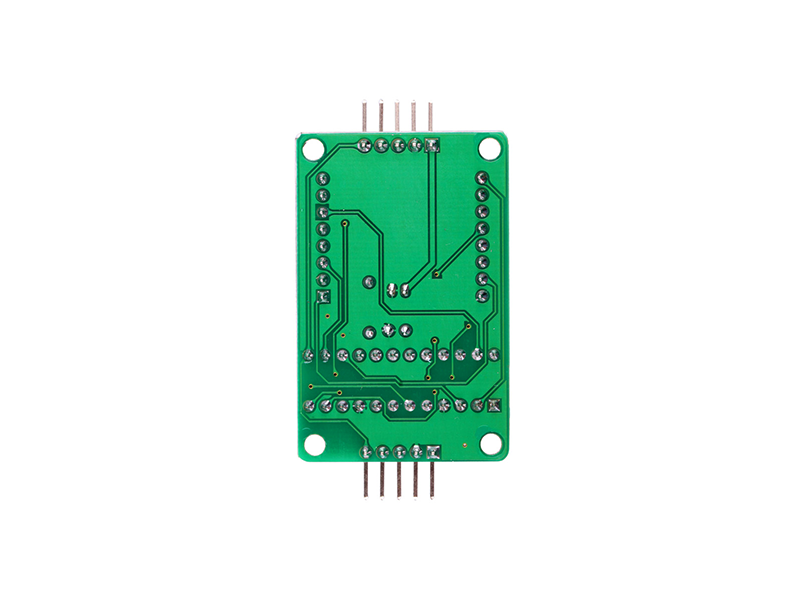

LED Dot Matrix Module Bottom

MAX7219 is a kind of integrated serial input/ output common cathode display driver, it connects microprocessor and 8-digit seven period of digital LED display, also can be connected to the bar graph display or 64 independent LED.

Specifications

Colors
Red
Interfaces
MAX7219
Length x Width x Height
50mm x 32mm x 15mm
Operating Voltage
5 V
