16x2 LCD Light Green

16x2 LCD Light Green - Image 1
16x2 LCD Light Green - Image 2
16x2 LCD Light Green - Image 3

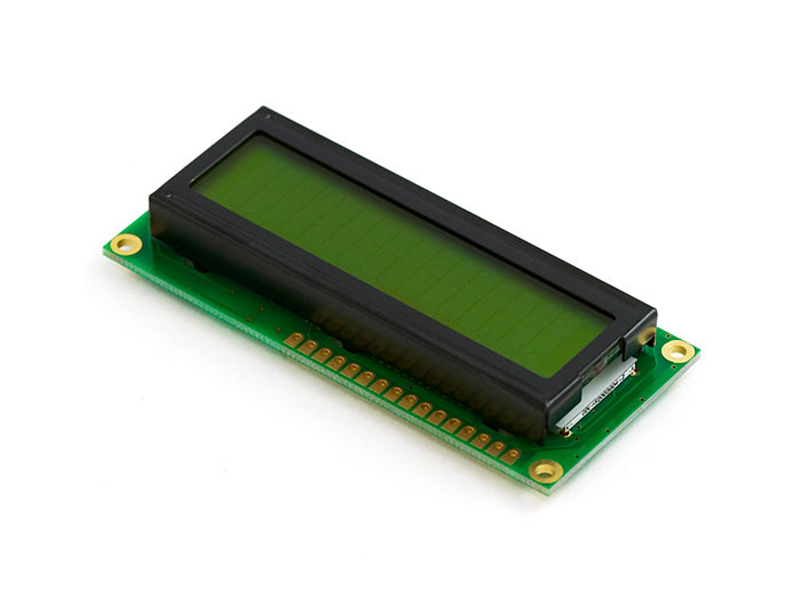

16x2 LCD Light Green

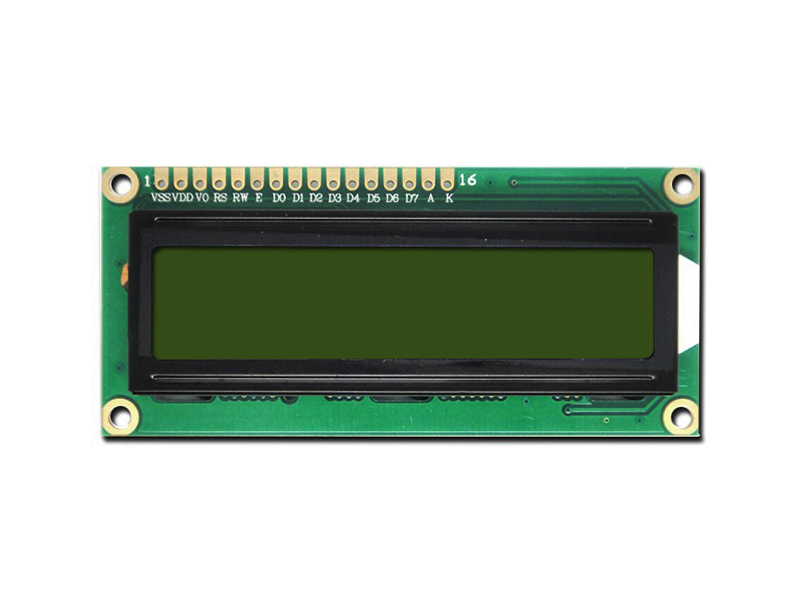

16x2 LCD Light Green Top

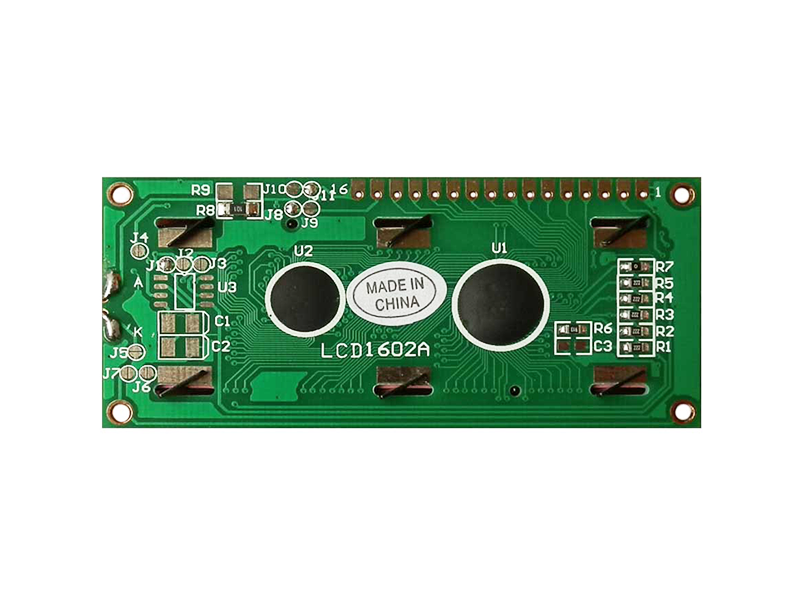

16x2 LCD Light Green Bottom

This 1602 LCD module is a 16x2 dot matrix Character LCD Module display in green LCD Mode, Six O'clock viewing direction, Normal Temperature Range (Operating Temp: 0°C to 50°C, Storage Temp: -20°C to 60°C), and Light green LED Backlight.  It has a transmissive polarizer suitable for darker environment. This product is assembled Chip On board with 1/16 Duty and a Controller IC S6A0069 or equivalent.  The interface type is Parallel. This is an ROHS Compliant product manufactured with ISO standards and procedures.

Specifications

Colors
Light green back light with black letters
Operating Voltage
5 V
