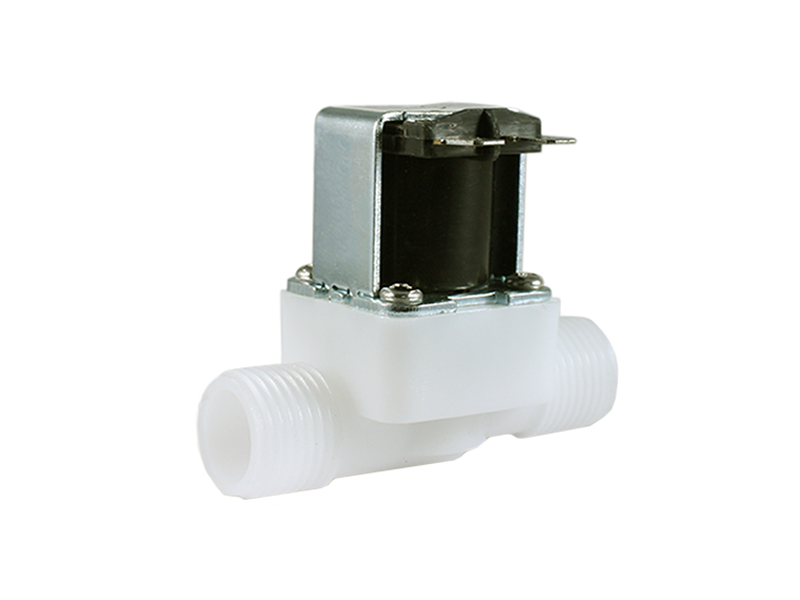

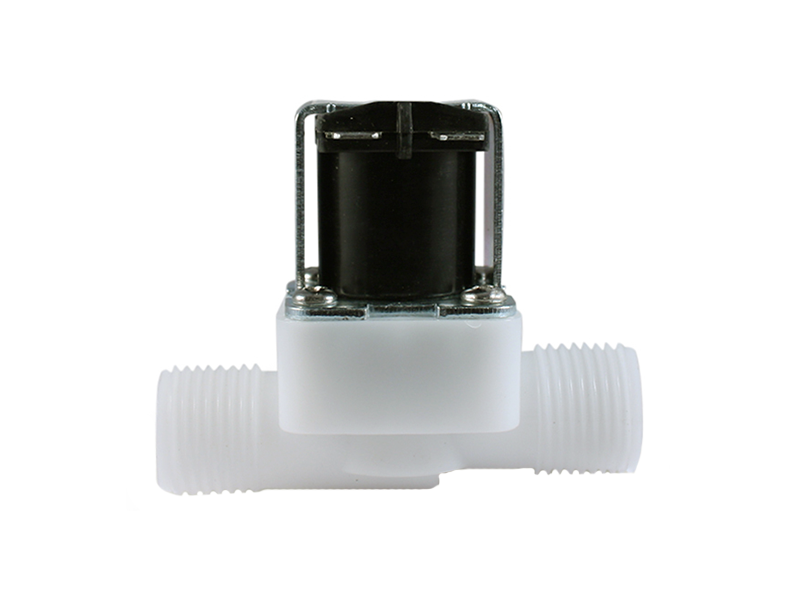

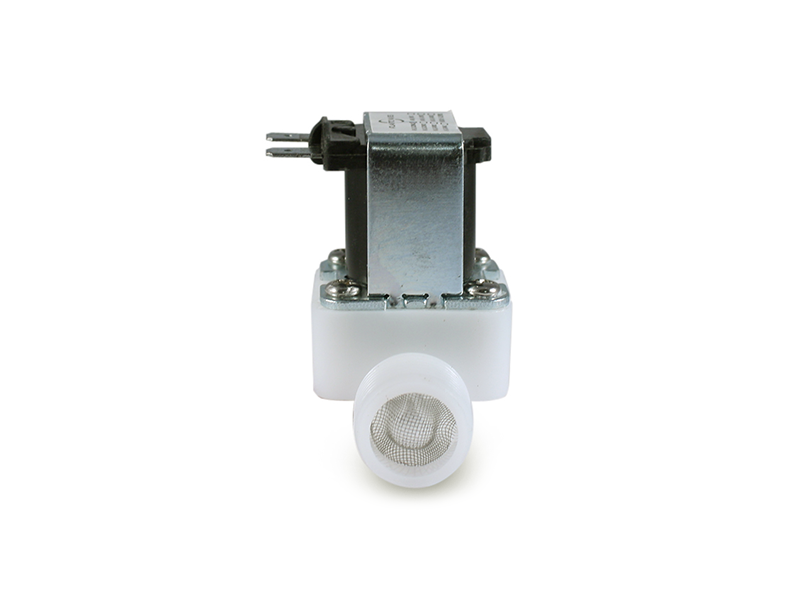

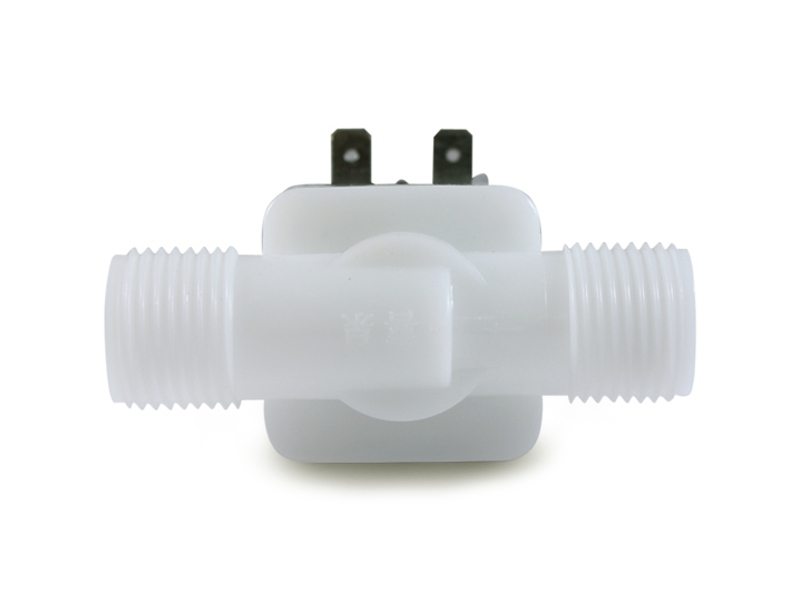

Plastic solenoid valve line is a two-way, direct acting valve with a normally closed operating position. This means that there are two ports in which media flows, the valve will open when energized and allow media to pass through. Taking the energy away from the valve will close it and stop the flow. It works across various media such as water, air, oil or other low viscosity fluids.
Specifications
Length x Width x Height
84mm x 43mm x 57mm
Operating Voltage
12
V
Operation Mode
Normally Closed
Port Size
1/2’’ NPSM
Pressure Limits
0.02 Mpa - 0.8 Mpa
Response Time
Response time (open): ≤ 0.15 sec
Response time (close): ≤ 0.3 sec
Weight
122
g
Working Medium
Water
Air
Oil
