Dual Axis Yellow Gear Motor

Dual Axis Yellow Gear Motor - Image 1
Dual Axis Yellow Gear Motor - Image 2
Dual Axis Yellow Gear Motor - Image 3

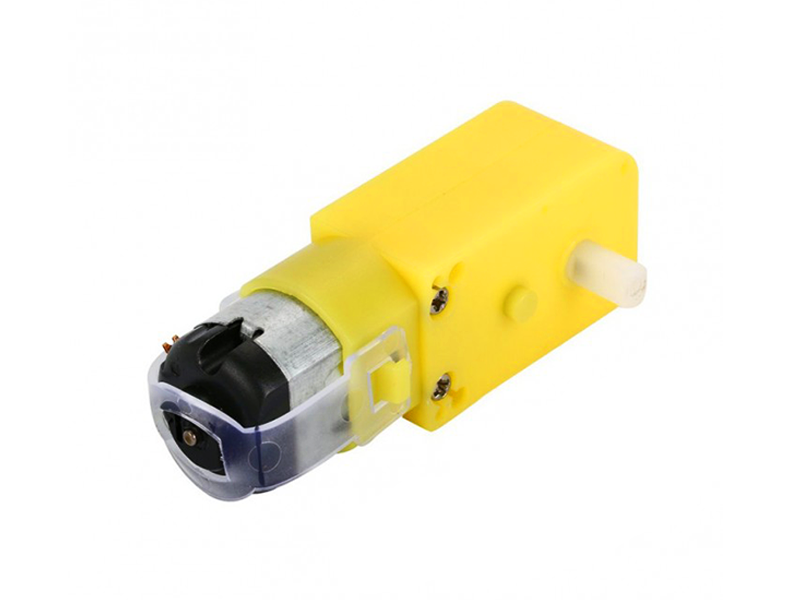

Dual Axis Yellow Gear Motor

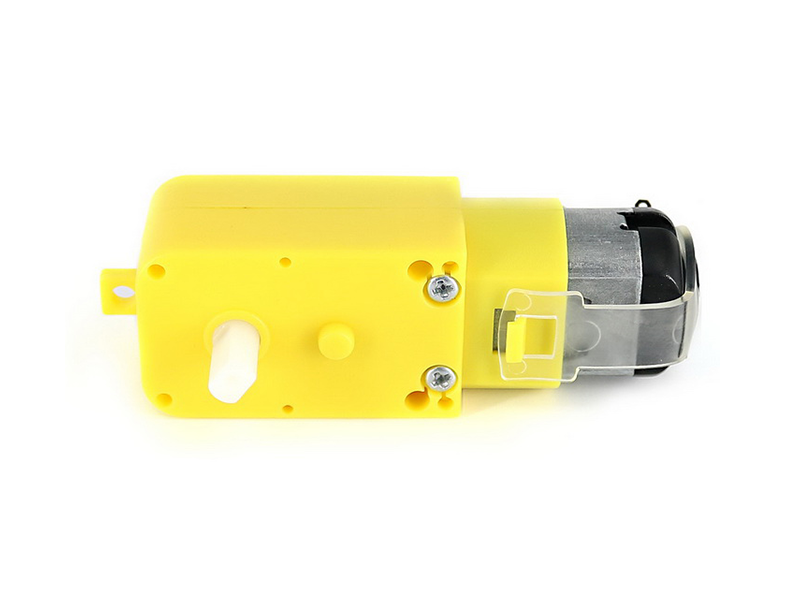

Dual Axis Yellow Gear Motor Side

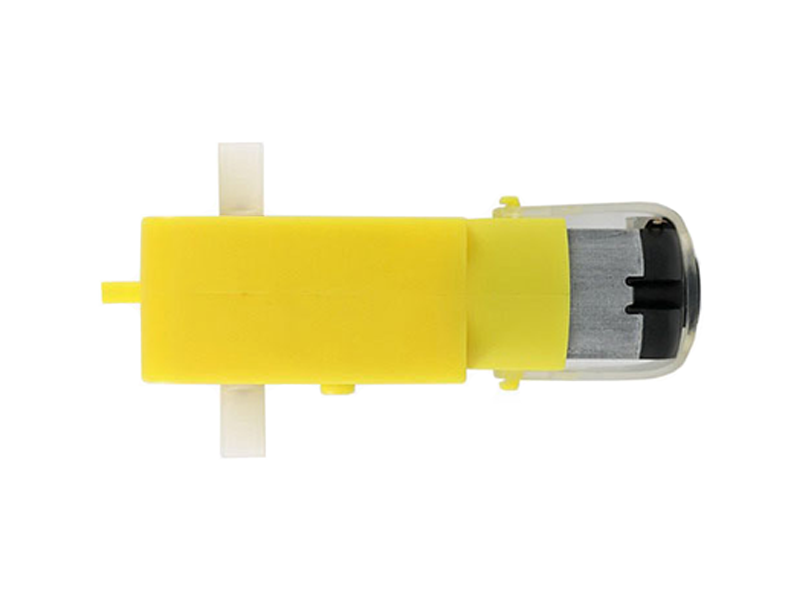

Dual Axis Yellow Gear Motor Top
LKR 240.00
Out of Stock

This Dual Axis Yellow Gear Motor is ideal for robotic car or line-tracing robot. With plastic construction and colored in bright yellow, the DC gear motor measures approx. 2.5 inch long, 0.85 inch wide and 0.7 inch thick . The wheel can be mounted on either side and the gear motor works well between 4V to 7V (recommended 6 Volts). At a ratio of 1:48 you can get some really good torque at 5 Volts.

Specifications

Current
160mA @ 3V 220mA @ 6V
Operating Voltage
3V ~ 6V
RPM
100 rev / min @ 3V 200 rev / min @ 6V
Shaft Diameter
5mm
Shaft Length
7.9mm
Torque
0.4kg.cm
